Battery spot welder

There are two Model:AMP-10K AC Battery Spot Welder and DPM-10K DC Battery Spot Welder

PRODUCT SERIES:

Product Center

Spot Welding Machine

KEYWORDS :

Spot Welding Machine

Battery spot welder

Inquiry

DESCRIPTION

Battery Spot Welder
Main Features：
1.There are two Model:AMP-10K AC Battery Spot Welder and DPM-10K DC Battery Spot Welder;
2.Adopt the principle of Single sided, two points, and over-current welding,doesn’t damage the internal structure of welded workpieces;
3.Beautiful welding traces, small spark, no black (The battery won’t sag or fluid flow after spot-welding). It completely overcomes the problems that the lithium battery has low pressure and the fluid flows out of the battery. This spot welder is the most ideal assembly equipment for battery production;
4.The pressure of welding pins and the distance between the two pins can be regulated independently. And the regulation is quite convenient to make sure that the welding pressure is stable and reliable;
5.Beautiful, light and handy in design;
6.DPM-10K advantage:controller LCD panel displays welding parameters making process control more accurate and more convenient,Input DC,welding area more beautiful.

Main Applications

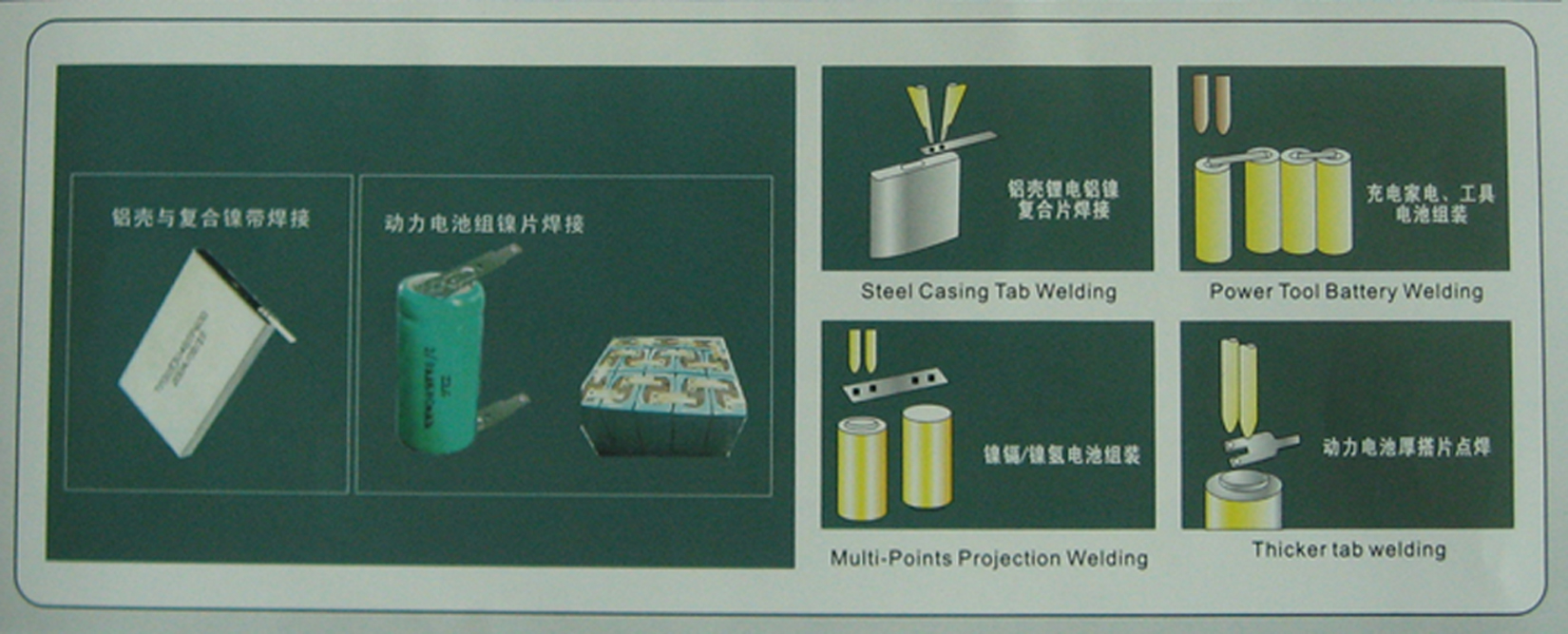

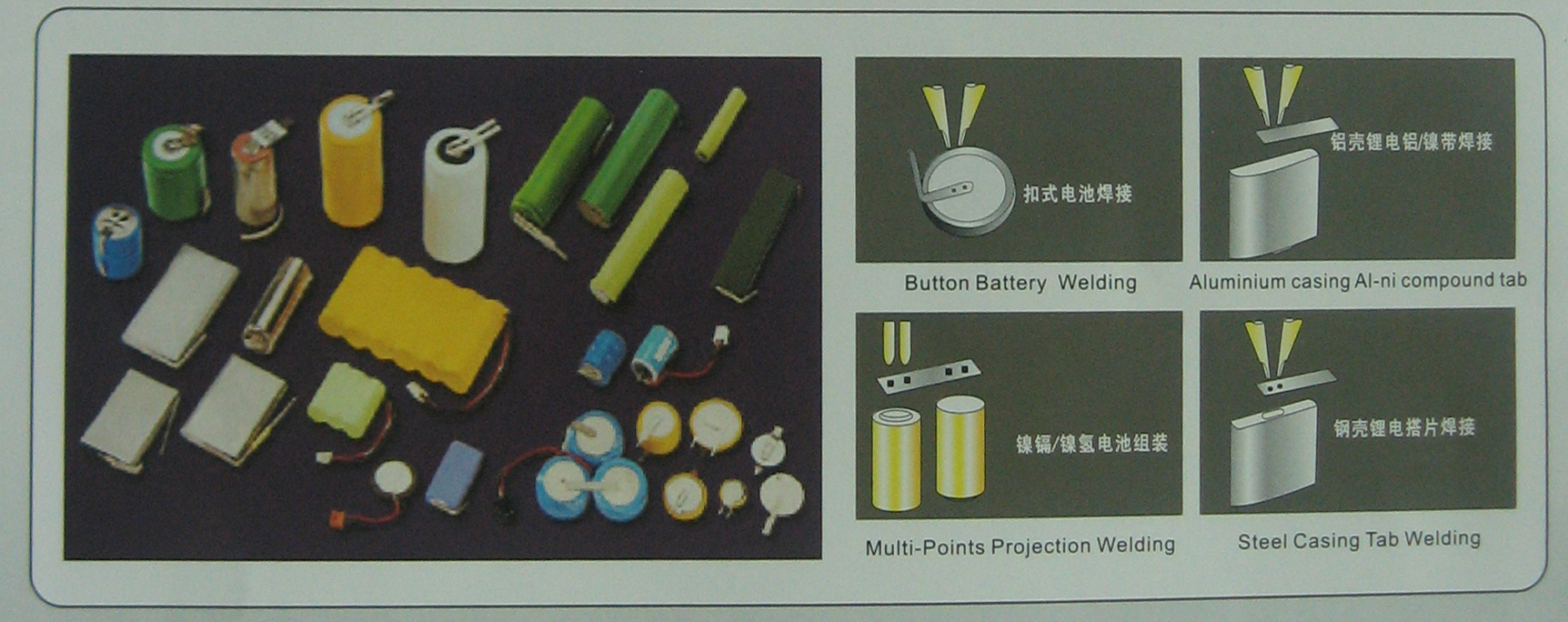

Battery Pack Production, Custom Battery Packs, Battery Pack Re-building, Battery Cell Tabbing Weld Alkaline, Ni-cd, Ni-MH, Li-Ion Cell Types, etc.

Main Technical Parameters：

SPECICATIONS	APM-10K	DPM-10K
Output Power	10KVA	10KVA (LCD Display)
Drive Style	Pedal/Pneumatic	Pedal/Pneumatic
Output Signal	Opto-electric Switch	Opto-electric Switch
Welding Current	AC 0-99%(Adjust)	DC 0-99% (Adjust)
Electrode Diameter	Φ3	Φ3
Input Power	AC 110-220V±10%/50Hz-60Hz	AC 220V±10%/50Hz-60Hz
Welding Power	AC Pulse	Inverter DC
Electrode Stroke	15mm	15mm
