Laser Longitudinal seam welding machine

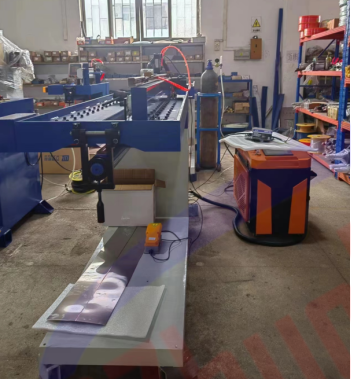

Automatic Laser Longitudinal Seam Welding Machine

Describtion

excellent beam quality
high reliability
high power stability
power adjustable, fast switching response
maintenance-free operation
high electro-optical conversion efficiency
high modulation frequency
simple welding operation
beautiful weld joint
small welding deformation
high welding efficiency

Main Features and Applications

1.Automatic Laser Longitudinal Seam Welding Machine is mainly used for the high quality and low distortion automatic longitudinal welding of the metallic cylinders and aligned plates made with stainless steel, iron, aluminum and brass, etc;
2.Adopted keyboard type copper pressing mechanism, to get the regular and stable clamping and cooling effect;
3.Special designed back protective copper block and molding slot, to assure the stable gas shield and achieve double side forming in single side welding;
4.Machine can adopt PLC or Relay integrated control as requirement;
5.Torch moving driven by DC motor , welding speed stepless adjustable;.
6.Apply to cooperate welding with laser welding machine source.

Compared with traditional laser, fiber laser has higher photoelectric conversion efficiency, lower power consumption and higher beam quality.
Fiber lasers are compact and ready to use.
Because of its flexible laser output mode, it can be easily operated and flexibly used in various production environments.


Technical parameters of longitudinal seam welding machine:

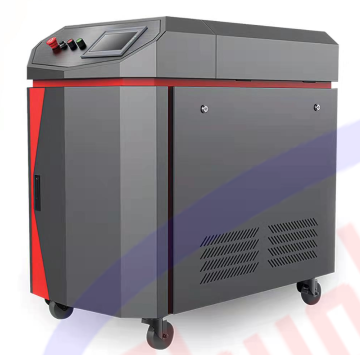

Technical parameters of Laser welding machine:

parameter specification

laser power ：
The power of the laser emitted by the laser, in percentage terms. For example, 40%. The power of the equipment laser is 1000W. At this time, the output power is 400W.
pulse period：
The length of time of a pulse.
Pulse width：
The time during which the laser is emitted during one pulse cycle.
light opening delay：
After pressing the switch button, the light is delayed for a certain time.
light closing delay：
After releasing the switch button, delay turning off the light for a certain time.
Motor standby：
The speed of the motor when it stands by.
Motor running：
The speed at which the motor is running.
Motor dormancy：
After the last use of the motor, after a certain period of time into hibernation state.
Wire feeding time delay：
Press the switch button and delay wire feeding for a certain time after the light is emitted.
Air supply delay：
After releasing the switch button, delay turning off the light for a certain time.
