Multi-axis CNC automatic welding machine

Whole machine characteristics
1. A variety of welding processes, spot welding, segment welding, full welding, welding gun Z-type swing welding;
2. According to different welding materials, different welding power sources can be selected, such as carbon dioxide shielded welding, argon arc welding, etc;
3. Open worktable, the height of the workpiece fixture installation table can be set according to the height of the workpiece, which can adapt to higher workpiece sizes;
4. High cost performance, the equipment can be set up in the middle of the automatic production line to form an online automatic welding line;
5. Can be two or more groups of equipment to establish workstations, collaborative welding of a single workpiece, improve production efficiency;
6. Five-axis four linkage, five-axis five linkage, the system can be extended to two degrees of freedom to do workpiece displacement use, can communicate with CNC displacement machine, CNC vertical or horizontal rotary table, and cooperate to complete the welding of complex workpieces;
7. Manual teaching type programming method, only need to manually scan the welding track once, the system automatically records the welding track, forms the execution program, and ordinary workers can master the programming skills in two hours.

Technical parameters
Travel range (customizable)
Left and right movement range: 400mm
Front and rear movement range: 400mm
Up and down movement range: 300mm
Welding torch horizontal rotation angle: 0-300 degrees

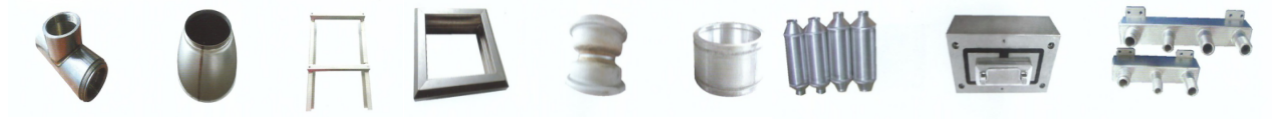

Welding sample:
